Solar Tracker
Superstate offers fully Automatic Dual Axis Solar Trackers in sizes ranging from 1.5kW to 5kW targeting both the residential and industrial segments
Increased electricity production per m2 PV by tracking the suns movement

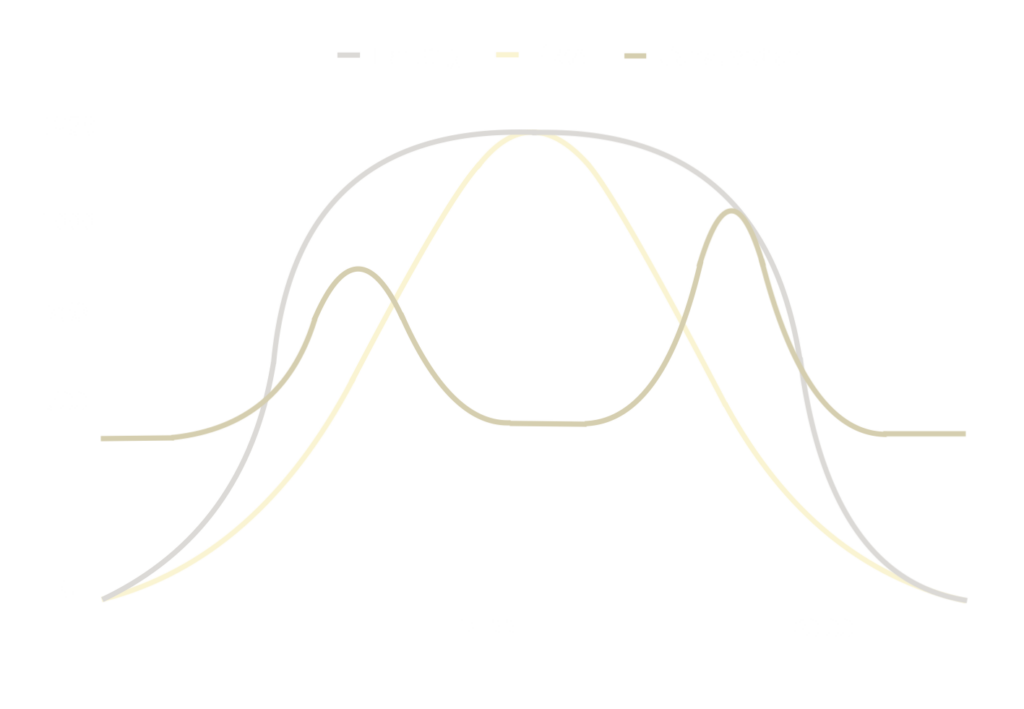

Solar tracking increases electricity production by 25-50% per year compared with a stationary panel facing south with an ideal tilt. The energy increase depends on the latitude where the installation is located, from +25% at the equator to +50% in The Nordics. The extra energy is generated in the morning and in the evening which matches the consumption curve of a typical household much more efficiently than a static system which peaks at solar noon – often when everyone is out of the house.
A significantly shorter payback time for the end customer can be reached with Superstate Solar Trackers compared to an equivalent fixed roof mounted Solar PV with around the same installed capacity.
Superstate Technology
UP TO 40%~50%
- SINGLE ROW TYPE
- Astronomic algorithm + Tile sensor close loop control
- Dual Axis Solar Tracking System with the most efficient design, easy for installation and maintenance
- Automatically tracks the trace of the sun
- Improve your power yield by 40%-50%
WARRANTY: 10-YEAR STRUCTURAL, 5-YEAR DRIVE AND CONTROL COMPONENT
Solar Tracker 1.5 - 5.0kW
Specs
Time + GPS
0.1 – 2.0 degrees (adjustable)
24V/1.5A
5,000 N x M
<0.01 kWh/day
100 degrees
50 degrees
Hot-Dipped Galvanized Steel > 65μm
-40C -+ 75C
CE, TUV
150 – 250kg
1.5 – 5.0kW
Certifications
We are trustworthy and certified
